Z Type Air Linker Air Suspension Heavy Truck Spare Parts for BPW

Short Description:

Part No.	880368	Paint	Electrophoretic paint
Spec.	100×38	Model	Air Linker
Material	51CrV4	MOQ	100 SETS
Bush Size	Ø30×Ø68×100	Development Length	975
Weight	52.4 KGS	Total PCS	2 PCS
Port	SHANGHAI/XIAMEN/OTHERS	Payment	T/T,L/C,D/P
Delivery Time	15-30 days	Warranty	12 months

Send email to us

Product Detail

Product Tags

Detail

This item is suitable for BPW Air Suspension Semi-Trailer

1. The oem number is 880368, the specification is 100*38, the raw material is 51CrV4

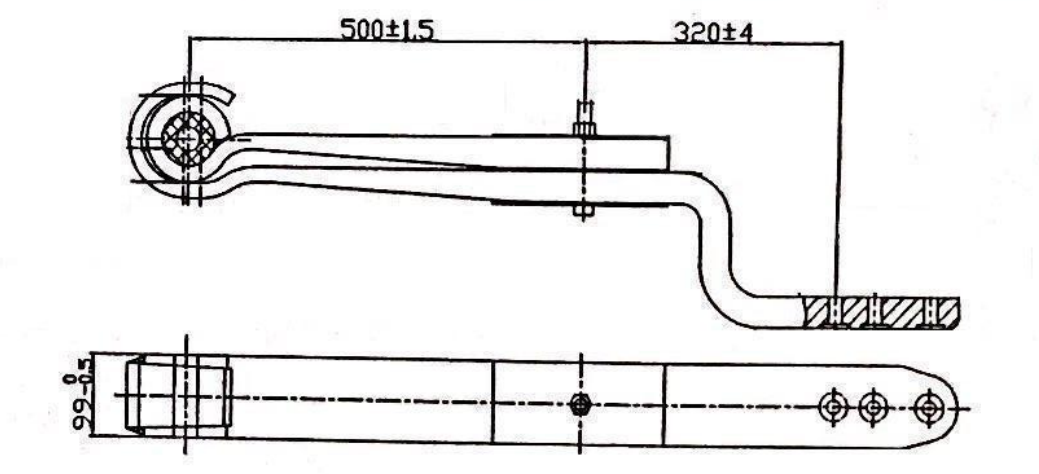

2. The item total has two pcs, first pcs with eye ,use rubber bush (φ30×φ68×100), the length from the centrl of the eye to the centrl hole is 500mm. The second pcs is Z type, the length from the cover to the end is 950mm
3. The height of the spring is 150mm
4. The painting use electrophoretic painting, the color is drak grey
5. It use with air kit together is the air suspension
6. We also can produce base on client's drawings design

Air Linkers Part Numbers:

Item Number	Type	Specification(mm)	Length(mm)
508204260	BPW	100*22	1170
880305	BPW	100*27	1172
880301	BPW	100*19	1170
880300	BPW	100*19	1173
880312	BPW	100*18	930
880323	BPW	100*19	970
508213190/881360	BPW	100*50	940
881508	BPW	100*48	870
508212640/881386	BPW	100*38	975
880305	BPW	100*27	1220
880301	BPW	100*19	1220
880355	BPW	100*38	940
901590	SCANIA	100*45	950
1421061/901870	SCANIA	100*45	1121
1421060/901890	SCANIA	100*45	1121
508213240	BPW	100*43	1015
508213260	BPW	100*38	920
508212830	BPW	100*43	1020
508213560/881513	BPW	100*48	940
508213240/881366	BPW	100*43	1055
508213260/881367	BPW	100*38	930
508212670	BPW	100*38	945
508213360/881381	BPW	100*43	940
508213190	BPW	100*50	940
881342	BPW	100*48	940
508213670/881513	BPW	100*50	940
21222247/887701/ F260Z104ZA75	BPW	100*48	990
F263Z033ZA30	BPW	100*40	633
886162	BPW	100*48	900
886150/3149003602	BPW	100*38	895
887706	BPW	100*35	990

Applications

The Air Linker is mainly applicable to the automobile air suspension.

● It is usually composed of one or two spring leaves, which are used symmetrically with left and right.
● It is installed between the axle and the air suspension bracket.
● It is formed as a whole, and its structure includes a straight part, a bending part and a eye rolling part.
● The rolled eye is equipped with a rubber composite bushing.
● The common material specifications of the guide arm are from 90 to 100 mm in width and from 20 to 50 mm in thickness.

The advantages of the air linker spring:

1、 One of the primary advantages of the Air Linker Leaf Spring is its ability to provide exceptional load-carrying capacity while maintaining a smooth and controlled ride.
The unique design of this leaf spring utilizes air links instead of traditional steel bars, offering a perfect balance between rigidity and flexibility.
This innovative approach ensures superior load distribution, reducing body roll and enhancing vehicle stability.
Whether you are hauling heavy loads or driving through uneven terrains, the Air Linker Leaf Spring provides the utmost comfort and control, minimizing detrimental effects on your vehicle's overall performance.
2、 Another significant advantage of the Air Linker Leaf Spring is its versatility. It is compatible with a wide range of vehicles, including trucks, SUVs, and commercial vehicles.
Whether you need to improve the suspension system in your heavy-duty work truck or enhance the off-road capabilities of your 4x4, the Air Linker Leaf Spring is the ultimate solution.
With its robust construction and high-quality materials, this suspension system withstands extreme conditions and ensures long-lasting performance.
3、 Moreover, the Air Linker Leaf Spring offers adjustable features, allowing drivers to fine-tune their vehicle's suspension according to their specific needs and preferences.
Whether you require a stiffer ride for a more responsive handling experience or a softer ride for added comfort during long journeys, this suspension system provides the flexibility to adjust the air pressure accordingly.
This customization capability ensures that every driver can achieve optimal performance, no matter their driving style or terrain preference.
4、 The Air Linker Leaf Spring distinguishes itself by its ease of installation and maintenance. Unlike traditional leaf springs, this product requires minimal downtime and has a straightforward installation process.
The air links can be easily adjusted or replaced, eliminating the need for costly and time-consuming replacement of the entire suspension system.
Additionally, the Air Linker Leaf Spring is designed to be low maintenance, offering a cost-effective solution that minimizes vehicle downtime and maximizes productivity.
5、 The Air Linker Leaf Spring is an innovative and groundbreaking suspension system that offers significant advantages over traditional options.
With its unparalleled load-carrying capacity, versatility, adjustability, and ease of installation, this product is destined to redefine the automotive industry.
Experience the next level of performance, comfort, and control with the Air Linker Leaf Spring - a suspension system designed to meet and exceed your expectations.

Reference

Provide different types of leaf springs which include conventional multi leaf springs, parabolic leaf springs, air linkers and sprung drawbars.
In terms of vehicle types, it include heavy duty semi trailer leaf springs, truck leaf springs, light duty trailer leaf springs, buses and agricultural leaf springs.

Leaf Springs Project

Production

How to measure!!!

Packing & Shipping

QC equipments

Quality aspect

1) Raw Material

Thickness less than 20mm. We use material SUP9

Thickness from 20-30mm. We use material 50CRVA

Thickness more than 30mm. We use material 51CRV4

Thickness more than 50mm. We choose 52CrMoV4 as the raw material

2) Quenching Process

We strictly controlled the steel temperature around 800 degree.

We swing the spring in the quenching oil among 10 seconds according to the spring thickness.

3) Shot Peening

Each assembling spring set under stress peening.

Fatigue test can reach over 150000 cycles.

4) Electrophoretic Paint

Each item use electrophoretic paint

Salt spray testing reach 500 hours

Technical aspect

1、Product technical standards：Implementing GB/T 19844-2018, GT/T 1222-2007;
2、QC management system: Implementing IATF 16949-2016
3、Raw material from the top 3 steel mills
4、Finished products quality testing by Stiffness Testing Machine, Arc Height Sorting Machine and Fatigue Testing Machine, etc
5、Processes inspected by Metallographic Microscope, Spectrophotometer, Carbon Furnace, Carbon and Sulfur Combined Analyzer and Hardness Tester, etc
6、Application of automatic CNC equipment such as Heat Treatment lines, Quenching Lines, Tapering Machine, Cutting Machine and Robot-assitant production, etc
7、Optimize product mix and reduce customers’ purchasing cost
8、Provide design support，to design leaf spring according to customers’cost
9、Warranty：12 months since shipping date

Service aspect

1、More than 10 spring engineers' support，excellent team with rich experience
2、To think from the perspective of our customers, deal with the needs of both sides systematically and professionally, and communicate in a way that customers can understand
3、7x24 working hours ensure our service systematical, professional, timely and efficient
