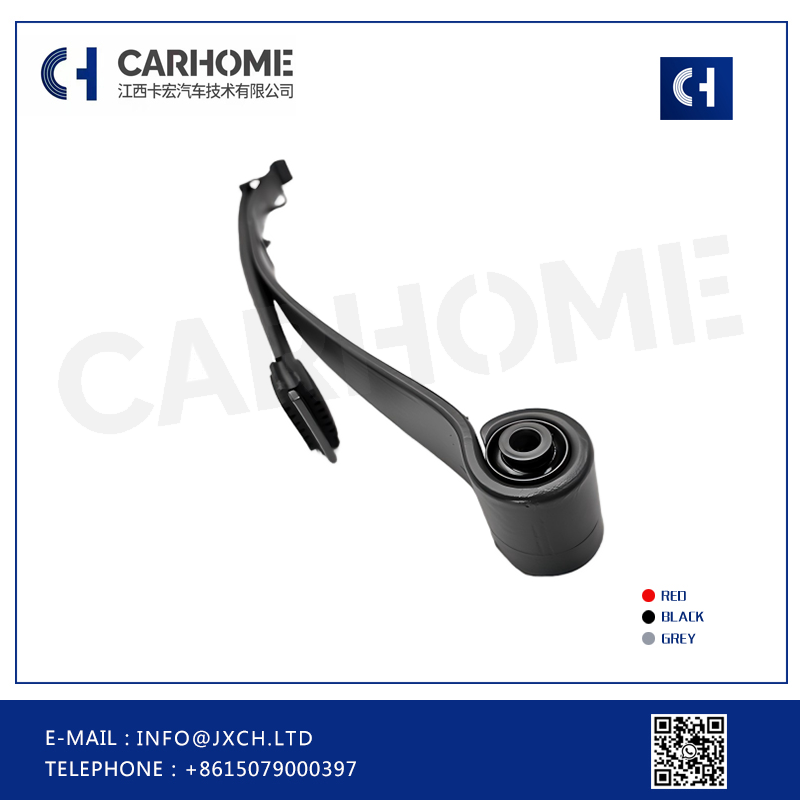

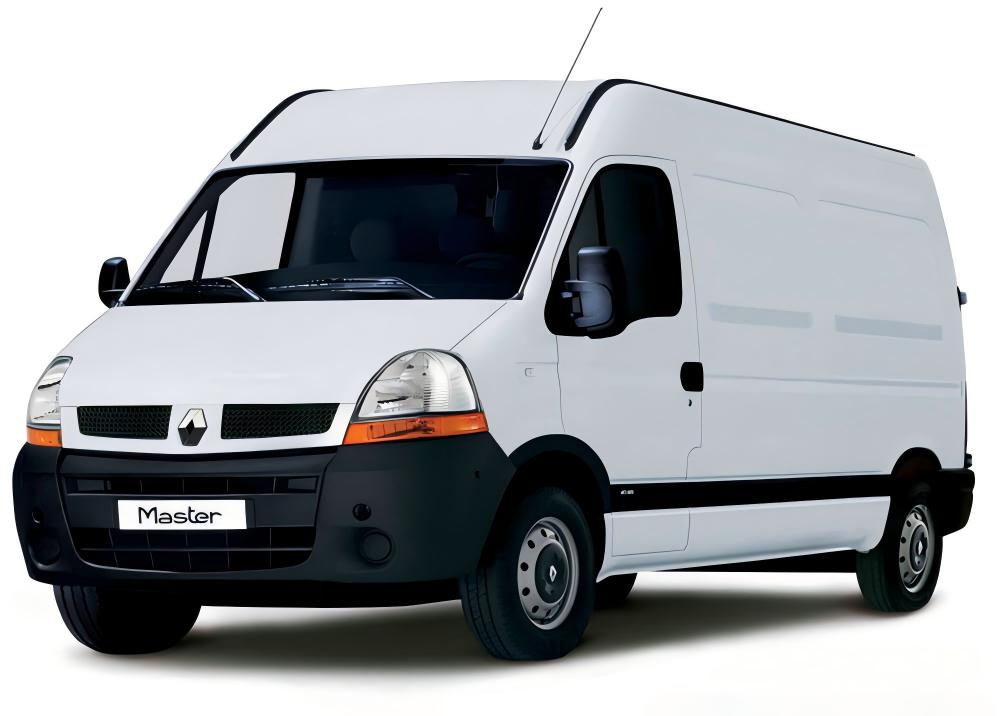

REAR LEAF SPRING RENAULT MASTER 2000 7700302148
Detail
The leaf spring is suitable for light duty
1. The item total has 2pcs, the raw material width size is 70mm
2. Raw material is SUP9
3. The painting use electrophoretic painting
4. We also can produce base on client's drawings to design
5. The develop length is 1430mm
Hot selling leaf springs OEM numbers:
| S/N | OEM No. | S/N | OEM No. | S/N | OEM No. |
| 1 | 5001871638 | 11 | 5430123473 | 21 | 5000452806 |
| 2 | 5010630359 | 12 | 5010488153 | 22 | 5010557733 |
| 3 | 5010383714 | 13 | 5010302537 | 23 | 5010294113 |
| 4 | 5010537273 | 14 | 5010383758 | 24 | 5010130726 |
| 5 | 5010600023 | 15 | 5010537665 | 25 | 5010130090 |
| 6 | 5010294850 | 16 | 5010488231 | 26 | 5010557734 |
| 7 | 5430122792 | 17 | 5010488499 | 27 | 5010383590 |
| 8 | 5430119475 | 18 | 5010267871 | 28 | 5010239210 |
| 9 | 5010383760 | 19 | 5010383314 | 29 | 5010294204 |
| 10 | 5001848113 | 20 | 5010488500 | 30 | 5000752687 |
Applications
Truck Leaf Springs And Hauling: What You Need To Know
In a truck, the leaf springs are the main component keeping the wheels moving smoothly over bumps and potholes without transferring the jarring to the body of the truck. This makes your ride smoother and easier on your passengers, as well as on any type of load that you may be carrying.
Without leaf springs and the rest of your vehicle suspension, your drive would be extremely uncomfortable. However, not everyone realizes that leaf springs come in many different load capacities for the same type of truck. If you're going to use your truck to haul heavy loads, then you need to know what weight your leaf springs can hold so that you don't exceed the limit they can carry. Options are available to improve the carrying capacity of the leaf springs and suspension, but knowing how large your biggest load will be is an important first step.
For light duty trailer leaf springs, There are 6 end treatment styles:
1. Double eyes slipper springs (Capacity 300-4000lbs),
2. Open eye slipper springs (Capacity 1500-2750lbs),
3. Flat end slipper springs (Capacity 300-3000lbs),
4. Radius end slipper springs (Capacity 230-7500lbs),
5. Hook end slipper springs (Capacity 750-4000lbs),
6. Parabolic type springs.
These leaf spring are very popular in North America, Australia and New Zealand markets.
Reference
Provide different types of leaf springs which include conventional multi leaf springs, parabolic leaf springs, air linkers and sprung drawbars.
In terms of vehicle types, it include heavy duty semi trailer leaf springs, truck leaf springs, light duty trailer leaf springs, buses and agricultural leaf springs.
Production
Packing & Shipping
QC equipments
Our advantage
Thickness less than 20mm. We use material SUP9
Thickness from 20-30mm. We use material 50CRVA
Thickness more than 30mm. We use material 51CRV4
Thickness more than 50mm. We choose 52CrMoV4 as the raw material
We strictly controlled the steel temperature around 800 degree.
We swing the spring in the quenching oil among 10 seconds according to the spring thickness.
Each assembling spring set under stress peening.
Fatigue test can reach over 150000 cycles.
Each item use electrophoretic paint
Salt spray testing reach 500 hours
Technical aspect
1、Product technical standards：implementation of IATF16949
2、More than 10 spring engineers' support
3、Raw material from the top 3 steel mills
4、Finished products tested by Stiffness Testing Machine, Arc Height Sorting Machine; and Fatigue Testing Machine
5、Processes inspected by Metallographic Microscope, Spectrophotometer, Carbon Furnace, Carbon and Sulfur Combined Analyzer; and Hardness Tester
6、Application of automatic CNC equipment such as Heat Treatment Furnace and Quenching Lines, Tapering Machines, Blanking Cutting Machine; and Robot-assitant production
7、Optimize product mix and reduce customer purchasing cost
8、Provide design support，to design leaf spring according to customer cost
Service aspect
1、Excellent team with rich experience
2、Think from the perspective of customers, deal with the needs of both sides systematically and professionally, and communicate in a way that customers can understand
3、7x24 working hours ensure our service systematical, professional, timely and efficient.
