LEAF SPRING RENAULT 5010488354 5000452806 5010557352 5010305377
Detail

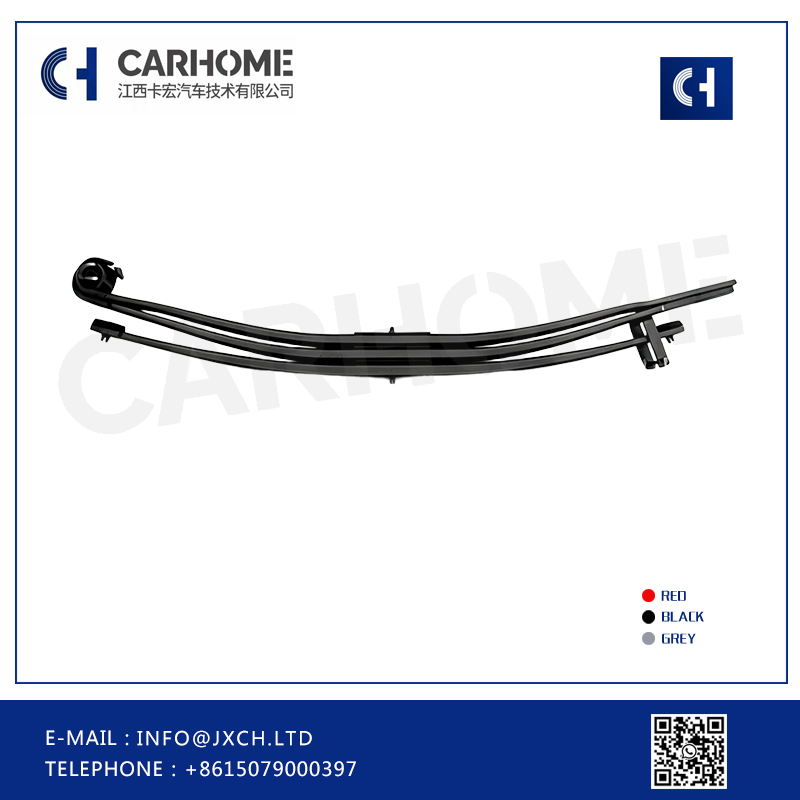

The leaf spring is suitable for Heavy Duty Truck
1. The item total has 3pcs, the raw material width size is 90mm
2. Raw material is SUP9
3. The painting use electrophoretic painting
4. We also can produce base on client's drawings to design
5. The develop length is 1960mm
Hot selling leaf springs OEM numbers:
| S/N | OEM No. | S/N | OEM No. | S/N | OEM No. |
| 1 | 5010557113 | 11 | 5010600386 | 21 | 5000452462 |
| 2 | 5010488599 | 12 | 5010239373 | 22 | 5000454385 |
| 3 | 5010383762 | 13 | 5010488356 | 23 | 5010557352 |
| 4 | 5430123409 | 14 | 5010327827 | 24 | 5010305377 |
| 5 | 5001848112 | 15 | 5010488354 | 25 | 5010130761 |
| 6 | 5000454238 | 16 | 5010537718 | 26 | 5010383828 |
| 7 | 500045239 | 17 | 5010239209 | 27 | 5000751122 |
| 8 | 5010297316 | 18 | 5010383589 | 28 | 5000751358 |
| 9 | 5010383831 | 19 | 5010557264 | 29 | 5010383734 |
| 10 | 5010500386 | 20 | 5000396921 | 30 | 5010557358 |
Applications
Why can't new energy commercial vehicles directly adopt the leaf spring design of gasoline vehicles?
① The center of gravity and axle load distribution of electric vehicles change, and the battery continuously increases the sprung mass;
② The operation of the motor brings high-frequency vibration, and the original leaf spring stiffness is prone to resonance;
③ The energy consumption requirements of the whole vehicle are stringent, and the requirements for lightweight indicators are higher;
④ For range requirements, reducing unsprung mass can reduce energy consumption, and stiffness matching and fatigue verification need to be re-conducted.
Reference
Provide different types of leaf springs which include conventional multi leaf springs, parabolic leaf springs, air linkers and sprung drawbars.
In terms of vehicle types, it include heavy duty semi trailer leaf springs, truck leaf springs, light duty trailer leaf springs, buses and agricultural leaf springs.
Production
Packing & Shipping
QC equipments
Our advantage
Thickness less than 20mm. We use material SUP9
Thickness from 20-30mm. We use material 50CRVA
Thickness more than 30mm. We use material 51CRV4
Thickness more than 50mm. We choose 52CrMoV4 as the raw material
We strictly controlled the steel temperature around 800 degree.
We swing the spring in the quenching oil among 10 seconds according to the spring thickness.
Each assembling spring set under stress peening.
Fatigue test can reach over 150000 cycles.
Each item use electrophoretic paint
Salt spray testing reach 500 hours
Technical aspect
1、Product technical standards：implementation of IATF16949
2、More than 10 spring engineers' support
3、Raw material from the top 3 steel mills
4、Finished products tested by Stiffness Testing Machine, Arc Height Sorting Machine; and Fatigue Testing Machine
5、Processes inspected by Metallographic Microscope, Spectrophotometer, Carbon Furnace, Carbon and Sulfur Combined Analyzer; and Hardness Tester
6、Application of automatic CNC equipment such as Heat Treatment Furnace and Quenching Lines, Tapering Machines, Blanking Cutting Machine; and Robot-assitant production
7、Optimize product mix and reduce customer purchasing cost
8、Provide design support，to design leaf spring according to customer cost
Service aspect
1、Excellent team with rich experience
2、Think from the perspective of customers, deal with the needs of both sides systematically and professionally, and communicate in a way that customers can understand
3、7x24 working hours ensure our service systematical, professional, timely and efficient.
